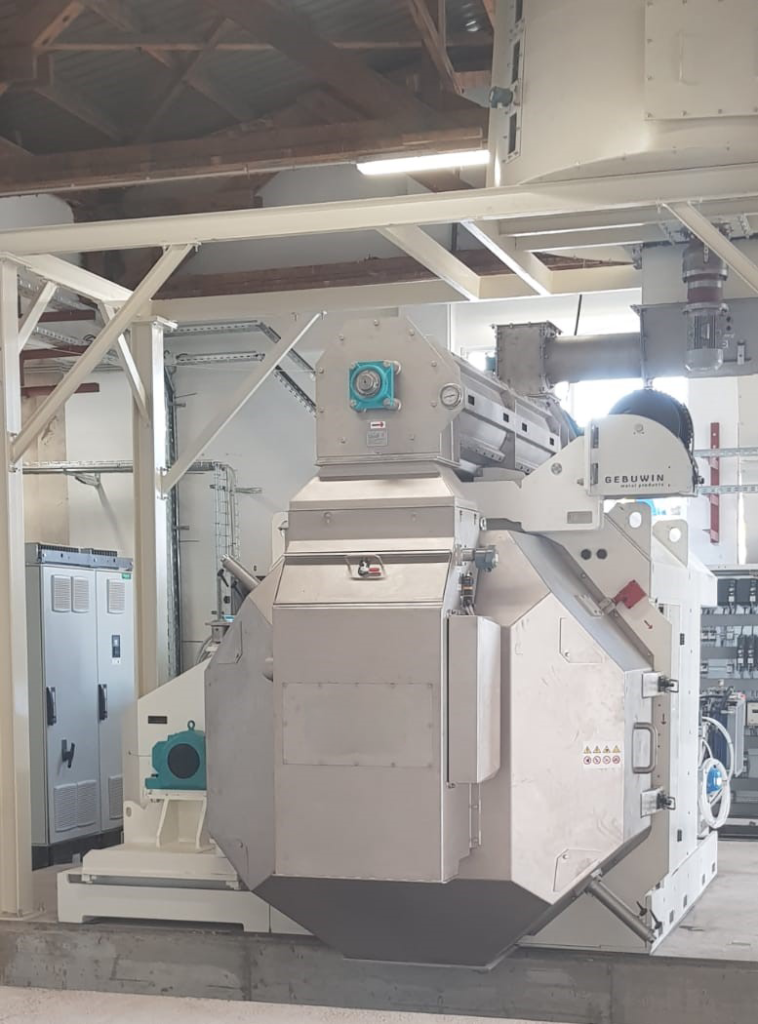

PELLET PRESSES
EHW ITALIAsupplypellet mills of different size specially studied and designed for the production of wood pellets and biomass in general. . They are built with highly resistant materials and a structure made out of thick steel, giving strength and soundness, long life and a minimal need for maintenance.
EHW ITALIA dispose of presses of different sizes and capacities: the diameter of our dies starts from 420 up to 1200 mm., the main motors range from 75 to 630 kW for a production capacity from 0,8 to 10 ton/h.
The lubrication of the bearings is guaranteed by an internal circuit which operates while the machine is running, too. The dies are fixed by means of a removable sector system, allowing in this way a quick and easy dies replacement, requiring no balancing being self-centering.
pellet mills:
Diametro Motori kWe Capacità produttiva 420 75 – 90 0,8 -1 520 110 – 160 1 – 2 630 160 – 200 2 – 3 750 250 – 315 3 – 4 835 305 – 355 4 – 6 950 450 – 550 6 – 8 1.200 550 – 630 8 – 10
Diameter
420
520
630
750
835
950
1.200
Motors kW
75 – 90
110 – 160
160 – 200
250 – 315
305 – 355
450 – 550
550 – 630
Output
0,8 -1
1 – 2
2 – 3
3 – 4
4 – 6
6 – 8
8 – 10
YOU WANT TO KNOW MORE ABOUT OUR PELLET MILLS?
Get in touch with us by leaving your contacts on the form below and we will be at your service in a short time to provide you with all the support you need.
